Description

Genuine True OEM replacement part. Manufacturer part number 997790.

Part specifications and included components

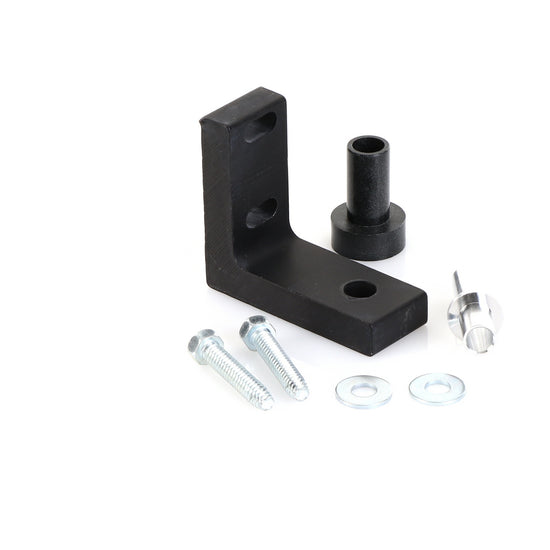

HINGE ASM BTM GDM-49-HC~TSL01 INCLUDES: 214733 HINGE SHAFT, 844402 FLANGE BEARING, 2) 830507 SCREWS, 2) 830906 WASHERS, 991527 BOTTOM HINGE BRACKET, AND INSTUCTIONS

• Manufacturer: True Manufacturing
• Part number: 997790
• Sold as: one part or kit, as described above
• Manufacturer-published weight: 0.23 lb
• Manufacturer-published dimensions: 4.90 IN L, 3.10 IN W, 1.85 IN H; 12.45 CM L, 7.87 CM W, 4.70 CM H

Model and serial-number fitment

The models below are listed by True for this part. Production dates, serial numbers, cabinet options, and prior door or component changes can affect the exact application. This model list does not mean the part fits every serial number of each model. Confirm your cabinet serial number in True Online Parts Search (TOPS) before ordering.

Serial-specific compatibility and production-change restrictions must be checked in True’s model-specific notes or TOPS. No unrestricted serial-number compatibility is claimed.

PDF documents

These are equipment-family manuals for applicable models, rather than instructions specific to every part or cabinet serial number. Select the manual matching your equipment.

• GDM Series installation manual (PDF) — Official equipment-family manual or general service reference; match your cabinet family and revision
• Swing door service instructions (PDF) — Official equipment-family manual or general service reference; match your cabinet family and revision

True manual library · Manufacturer part specifications and model-specific notes
