Glycol/Water Chiller

Description

Applications:

• Beer Brewing & Distillery
• Food rocessing
• Cannabis Processing & CBD Oil

Construction Feature                                      Safety Features

Environmentally Friendly R-410A                     ETL Listed

Low profile design                                               Low Ambient Fan Cycling

Top Discharge Condenser Exhaust                    Low-Pressure Refrigeration Control

Easy Access Electrical Panel                             High-Pressure Refrigeration Control

Insulated Copper Piping                                    Low Water Flow Safety Shut-Off

Stainless Steel Heat Exchanger                           Short Cycling Time Delay

Compressor Crankcase Heater                            Temperature Sensor Failure Protection

G-90 Galvanized Cabinet                                      Water Inline Strainer

All Weather-Tight Components

Non-Corroding Insulated Water Tank                   Options for Custom Designs & Modifications

Water Level Viewing Ports

Water Tank Capacity of 40 Gallons                         Low-Pressure By-Pass

Stainless Steel Pump with Ball Valve                     Flooded Condenser With Receiver & Accumulator

24 Volt Digital Temperature Control

Module with On/Off Switch                                   Evaporator Heat Tape Freeze Protection

                                                                             High Pressure Pump

                                                                             Second Pump Connection

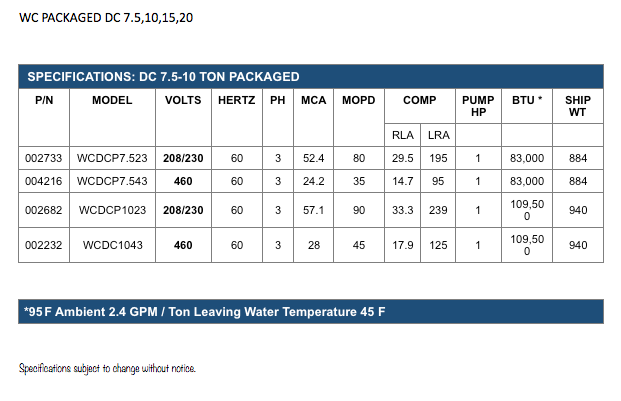

ELECTRICAL SPECIFICATIONS:

DC 7.5-10 Packaged

DIMENSIONS:

DC 7.5-10 Packaged

FLOW DIAGRAM:

DC 7.5-10 Packaged With OPTIONAL DUAL PUMPS
