Description

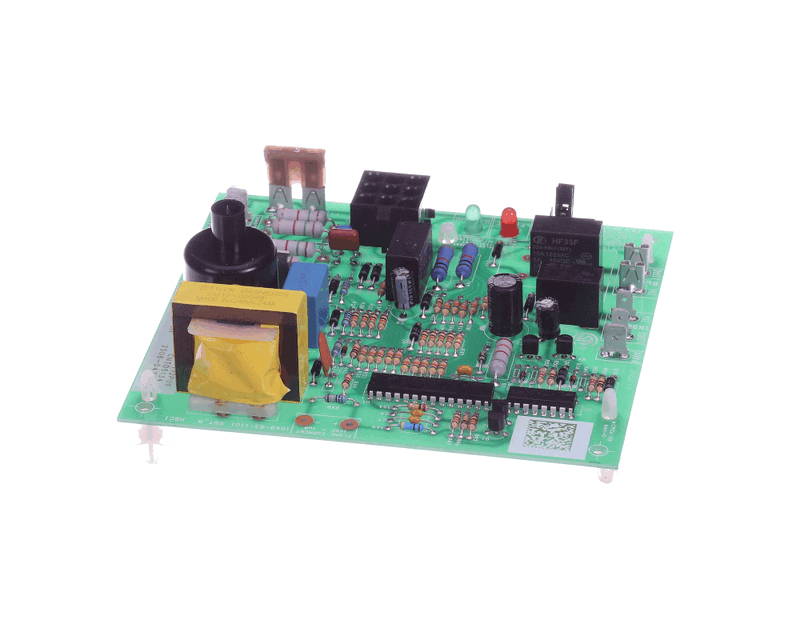

Trane CNT05134 OEM Ignition Control Board

Genuine Trane CNT05134 single-stage direct spark ignition control board for compatible heating equipment. This integrated board coordinates ignition and connected heating-system controls.

Specifications

• Manufacturer: Trane
• Part number: CNT05134
• Board type: Integrated
• Ignition type: Direct spark
• Heating stages: Single stage
• Input voltage: 24V
• Controlled components listed by Trane: Gas valve, spark ignitor, flame sensor, inducer, indoor blower, limit switch, pressure switch and conventional thermostat

Replacement and compatibility

Previous part-number references include CNT5134 and CNT07230. Compatibility must be verified for the exact equipment model, serial number and original control. The complete equipment model and serial number are required before ordering.

Shipping specifications

Shipping weight: 0.92 lb. Shipping dimensions: 8.40 × 8.50 × 5.70 inches.

Installation should be performed by a qualified HVAC technician following the equipment manufacturer’s instructions.
