Description

Genuine True OEM replacement part. Manufacturer part number 998017.

Part specifications and included components

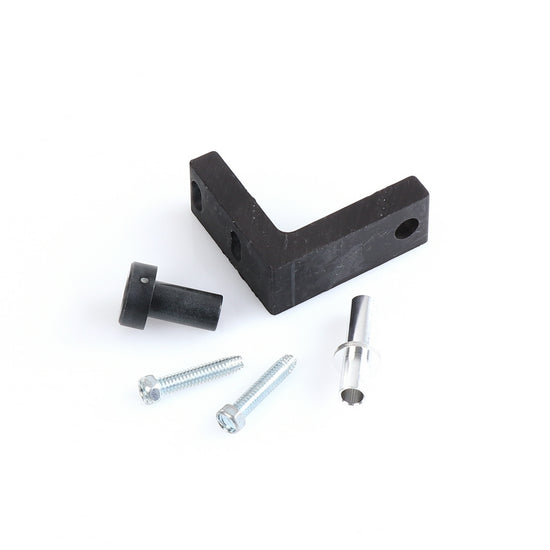

HINGE ASM BTM GDM-49F-HC~TSL01 991809 HINGE BRACKET BOTTOM, 214733 HINGE SHAFT, SCREWS, 844402 FLANGE BEARING, AND INSTRUCTIONS

• Manufacturer: True Manufacturing
• Part number: 998017
• Sold as: one part or kit, as described above
• Manufacturer-published weight: 0.22 lb
• Manufacturer-published dimensions: 3.60 IN L, 3.25 IN W, 1.60 IN H; 9.14 CM L, 8.26 CM W, 4.06 CM H

Model and serial-number fitment

The models below are listed by True for this part. Production dates, serial numbers, cabinet options, and prior door or component changes can affect the exact application. This model list does not mean the part fits every serial number of each model. Confirm your cabinet serial number in True Online Parts Search (TOPS) before ordering.

Serial-specific compatibility and production-change restrictions must be checked in True’s model-specific notes or TOPS. No unrestricted serial-number compatibility is claimed.

PDF documents

Official True equipment-family manuals and service references. Choose the document matching your cabinet family and revision. These manuals do not establish serial-specific part compatibility.

• GDM Series installation manual (PDF)
• GDIM Series installation manual (PDF)
• Swing door service instructions (PDF)

True manual library · Manufacturer part specifications and model-specific notes
