True 870801 DOOR HINGE KIT, TOP, GDM
$146.98

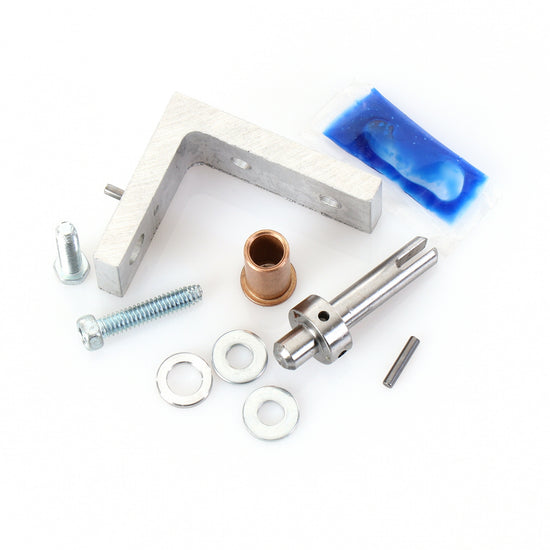

Genuine True OEM part 870801. HINGE KIT DOOR TOP GDM 18 1/4"W x 41 1/4"L INCLUDES: 1)925740 HINGE BRACKET ASSEM, 1)832110 BRASS BUSHING, 1)832108 SHAFT, 1)832103 STOP PIN, 1)830630 WASHER, 2)830906 WASHER, 2)830537 SCREWS, 204380 LOCTITE Verify model and cabinet serial-number fitment before ordering.
- Description
- Additional information
- Reviews (0)
- More Products
Description
Genuine True OEM replacement part. Manufacturer part number 870801.
Part specifications and included components
HINGE KIT DOOR TOP GDM 18 1/4"W x 41 1/4"L INCLUDES: 1)925740 HINGE BRACKET ASSEM, 1)832110 BRASS BUSHING, 1)832108 SHAFT, 1)832103 STOP PIN, 1)830630 WASHER, 2)830906 WASHER, 2)830537 SCREWS, 204380 LOCTITE
- Manufacturer: True Manufacturing
- Part number: 870801
- Sold as: one part or kit, as described above
- Manufacturer-published weight: 0.4 lb
- Manufacturer-published dimensions: 3.90 IN L, 3.20 IN W, 1.60 IN H; 9.91 CM L, 8.13 CM W, 4.06 CM H
Model and serial-number fitment
The models below are listed by True for this part. Production dates, serial numbers, cabinet options, and prior door or component changes can affect the exact application. This model list does not mean the part fits every serial number of each model. Confirm your cabinet serial number in True Online Parts Search (TOPS) before ordering.
Serial-specific compatibility and production-change restrictions must be checked in True’s model-specific notes or TOPS. No unrestricted serial-number compatibility is claimed.
View all 61 manufacturer-listed models
- GDIM-26
- GDIM-26NT
- GDIM-49
- GDIM-49NT
- GDIM-60
- GDM-05
- GDM-05-HC-LD
- GDM-05-S
- GDM-05F
- GDM-05F-PT
- GDM-05PT
- GDM-05PT-S
- GDM-05RF
- GDM-14SL
- GDM-19
- GDM-19T
- GDM-19T-HC
- GDM-23
- GDM-23-HC-LD
- GDM-23FC
- GDM-23FC-RF
- GDM-23HL
- GDM-23RF
- GDM-23RL
- GDM-23W
- GDM-23W-RF
- GDM-26
- GDM-26 FAMILY DOLLAR
- GDM-26HL
- GDM-26RF
- GDM-26W
- GDM-35
- GDM-35-HC-LD
- GDM-43
- GDM-49
- GDM-49 DOLLAR GENERAL
- GDM-49 FAMILY DOLLAR
- GDM-49-HC-LD
- GDM-49DT
- GDM-49FC
- GDM-49RL
- GDM-49RL-HC-LD
- GDM-49W
- GDM-60
- GDM-72
- GDM-72 DOLLAR GENERAL
- GDM-72 FAMILY DOLLAR
- GDM-72-HC-LD
- GDM-72FC
- GDM-72RL
- GEM-23
- GEM-23FC
- GEM-23RF
- GEM-26
- GEM-26 SUBWAY
- GEM-49
- GEM-49 SUBWAY
- GEM-49FC
- GEM-72
- GEM-72FC
- TVM-400
PDF documents
Official True equipment-family manuals and service references. Choose the document matching your cabinet family and revision. These manuals do not establish serial-specific part compatibility.
- GDM Series installation manual (PDF)
- GDIM Series installation manual (PDF)
- Swing door service instructions (PDF)
True manual library · Manufacturer part specifications and model-specific notes
Additional information
| Weight | 0.4 lbs |
|---|---|
| Dimensions | 3.9 × 3.2 × 1.6 in |
| Manufacturer | True Manufacturing |
| Manufacturer Part Number | 870801 |
| OEM Status | Genuine OEM |
